We provide full featured waterjet CNC control software. The software serves as
the user interface between the operator and the waterjet machine. The software

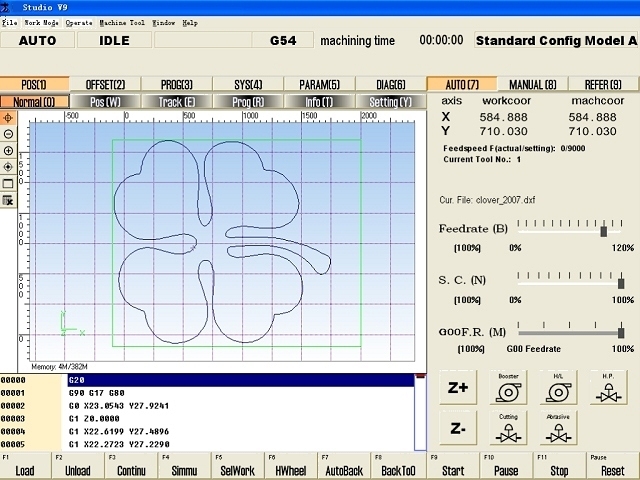

can read dxf file and post to G-code. Below is the screen capture of the main window.
This windoe shows a trace of the design to be cut and both Auto and Manual cutting modes.
The software is designed specifically for cnc waterjet cutting. It provides many useful
features such as simulation, single step execution, block execution, simple nesting, and
macro cutting wizard.
The above software windoe shows a pull down menu with rich operation selections.

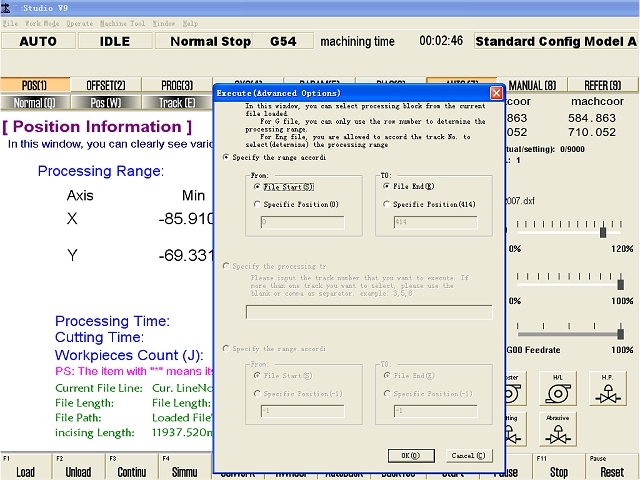

The block cutting feature is particularly useful when the cutting is interrupted by some unexpected
reasons, such as power outage, abrasive interruption, and nozzle clogging, etc. User can resume the
from the G-code line where the cutting stopped and finish the cutting.

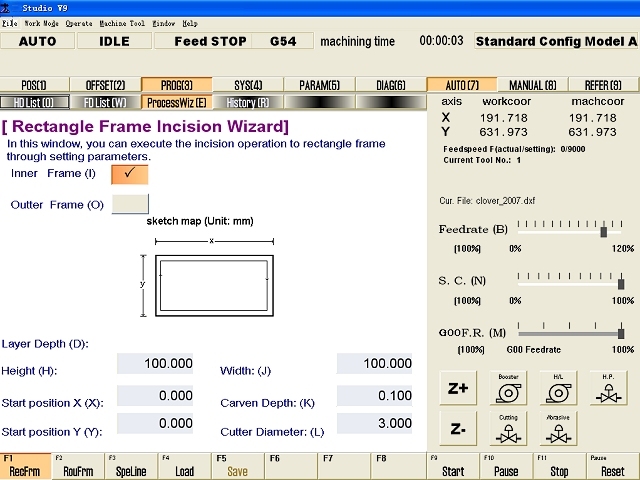

CNC macro cutting Wizard comes very handy when the user just want to cut simple geometry, such as
rectangle, circle or just a cut off line. Just specify the dimensions in the pop up window
and save it for the desired water jet cutting.
A very useful feature of the softwar is it provides detailed statistics of the cutting job,
such as Geometry coordinates , cutting time needed, and cutting length. These information
are helpful to estimate the cutting cost.
|
|
|
